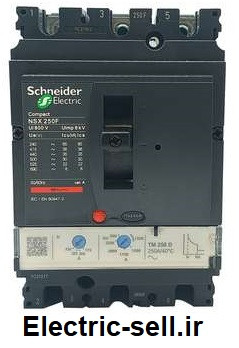

کلید اتوماتیک 125 آمپر اشنایدر سه پل 36kA حفاظت LSoI
۱۱٬۳۰۰٬۰۰۰ 6%
۱۰٬۶۰۰٬۰۰۰ تومان
این کلید مجهز به یک ضامن برای کنترل آن و 5 اسلات برای نصب تجهیزات جانبی است. دوام مکانیکی آن برابر با 40000 سیکل و درجه حفاظت آن IP40 است. محدوده دمایی مناسب برای عملکرد صحیح آنها برابر با 25- تا 70 درجه سانتیگراد و برای ذخیره و نگهداری بین 50- تا 85 درجه میباشد. این کلید به صورت ثابت روی صفحه نصب میشود. قبل از قطع میتواند 1.5 برابر جریان نامی را در 120 تا 400 ثانیه و 6 برابر جریان نامی را در 15 ثانیه (تأخیر زمانی طولانی مدت (tr)) تحمل کند. تآخیر زمانی طولانی مشخصه معکوس زمانی است که با افزایش جریان زمان قطع کاهش مییابد. جریان قطع کوتاه مدت این کلید (Isd) برابر با 1250 آمپر است. جریان Isd مقدار جریان اتصال کوتاهی است که در صورت عبور آن از کلید حتی به مدت کوتاه، کلید مدار را قطع می کند.
This switch is equipped with a latch for its control and 5 slots for the installation of accessories. Its mechanical durability is 40,000 cycles and its protection degree is IP40. The temperature range suitable for their correct operation is -25 to 70 ° C and for storage and maintenance is between -50 and 85 ° C. This switch is fixedly mounted on the panel. Before disconnecting, it can withstand 1.5 times the rated current in 120 to 400 seconds and 6 times the rated current in 15 seconds (long time delay (tr)). The long time delay is the inverse characteristic of time, which decreases with increasing current, the disconnecting time. The short-time breaking current of this switch (Isd) is 1250 A. The Isd current is the amount of short-circuit current that, if it passes through the switch even for a short time, will break the circuit breaker.
نحوهی عملکرد واحد تریپ TM-D در کلید اتوماتیک اشنایدر سه پل 125 آمپر 36 کیلو آمپر:
از جمله انواع واحد حفاظت در کلید کمپکت، TM-D یا حرارتی – مغناطیسی است. در حفاظت حرارتی یک بی متال حساس به حرارت تعبیه شده است که با عبور جریان آرام آرام گرم می شود اما اگر جریانی که از بی متال عبور می کند از مقدار نامی بیش تر شود، بی متال خم شده و به میله ی تریپ برخورد می کند که سبب قطع برق می شود. این حفاظت در یک تاخیر زمانی مشخصی برق را قطع می کند بنابراین تنها برای شرایط اضافه بار خوب است و در شرایط اتصال کوتاه باید از حفاظت دیگری که قابلیت قطع فوری برق را دارد استفاده شود. حفاظت مغناطیسی یک سیم پیچ با هسته ی متحرک دارد که با عبور جریان اتصال کوتاه از آن میدان مغناطیسی تولید می کند. این میدان مغناطیسی هسته ی سیم پیچ را به سمت میله ی تریپ حرکت داده و خیلی سریع برق را قطع می کند.
:How the TM-D trip unit works in a Schneider three-pole 125 A 36 K A automatic switch
Among the types of protection units in a compact switch is TM-D or thermal-magnetic. In thermal protection, a heat-sensitive bimetal is installed that slowly heats up as the current passes through it, but if the current passing through the bimetal exceeds the rated value, the bimetal bends and hits the trip rod, which causes the power to be cut off. This protection cuts off the power in a certain time delay, so it is only good for overload conditions, and in short-circuit conditions, another protection that can cut off the power immediately should be used. Magnetic protection has a coil with a moving core that produces a magnetic field when the short-circuit current passes through it. This magnetic field moves the coil core towards the trip rod, cutting off the power very quickly.
